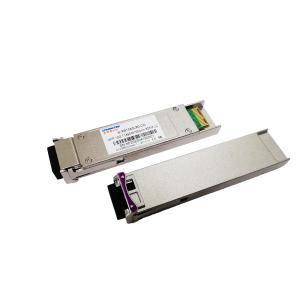

High Speed LC Fiber Optic 10G XFP Transceiever BIDI Tx1490nm Rx1550nm 80KM

Brand Name : Springtek

Model Number : S-XB1045L80-CD

Certification : ISO9001 RoHS FCC CE

Place of Origin : Wuhan China

MOQ : 1pc

Price : Get Latest Price

Payment Terms : T/T

Supply Ability : 50-80k per month

Delivery Time : 3~5working days

Packaging Details : Individual package Or 10pcs/pallet Or 20pcs/pallet

Data Rate : XFP 10G

Wavelength : Tx1490/Rx1550nm

Compatibility : Neuter, OEM,Compatible

Connector : LC

Distance : 80KM

Fiber Type : SMF

Temperature : 0~70 °C

Warranty : 3 Years

Contact Now

Good Quality High Speed Fiber Optic Transceiver 10G BIDI Tx1490nm,Rx1550nm, 80KM, LC Optic Fiber XFP Transceiever

S-XB1045L80-CD 221109.pdf

Ordering information

Part Number Product Description

S-XB1045L80-CD

BIDI,XFP, 10Gbps, Tx1490/Rx1550nm, SM, 80km, LC 0ºC~+70ºC, With DDM

Description

Springtek XFP+ BIDI module is compliant with the 10G Small Form-Factor Pluggable (XFP) Multi-Source Agreement (MSA), supporting data-rate of 9.953~11.1Gbps, and transmission distance up to 80km on SMF.

The transceiver module comprises a transmitter with 1490nm Cooled EML laser and a receiver with a APD photodiode. Transmitter and receiver are separate within a wide temperature range and offers optimum heat dissipation and excellent electromagnetic shielding thus enabling high port densities for 10GbE systems.

Features

  • Supports 9.953Gb/s to 11.1Gb/s bit rates
  • Hot-pluggable XFP footprint, Built-in digital diagnos
  • Maximum link length of 80km with SMF
  • 1490nm DFB laser and APD photodiode
  • XFP MSA package with duplex LC connector
  • No reference clock required
  • Single +3.3V power supply
  • Power dissipation <1.5W
  • Compatible with RoHS
  • Temperature range:0 to +70°C

Applications

  • SONET OC-192&SDH STM-64 at 9.953Gbps
  • 10GBASE-LR/LW 10G Ethernet
  • 1200-SM-LL-L 10G Fibre Channel
  • 10GE over G.709 at 11.09Gbps
  • OC192 over FEC at 10.709Gbps
  • Other optical links, up to 11.1Gbps

Absolute Maximum Ratings

Parameter Symbol Min Typ Max Unit
Power Supply Voltage Vcc -0.5 4.5 V
Storage Temperature Range Ts -40 +85 °C
Relative Humidity - Operating RHO 5 85 %

Recommended Operating Conditions

Parameter Symbol Min Typ Max Unit
Case Operating Temperature Range Tc 0 +70 °C
Power Supply Voltage Vcc 3.135 3.30 3.465 V
Supply Current Icc 500 mA
Data Rate BR 9.953 11.1 Gbps

Optical and Electrical Characteristics

Transmitter Electrical Characteristics
Parameter Symbol Min Typical Max Unit Notes
Centre Wavelength λc 1480 1490 1500 nm
Spectral Width(-20dB) Δλ 1 nm
Side-Mode Suppression Ratio SMSR 30 dB
Average Output Power Pout -1 +4 dBm 1
Extinction Ratio ER 8.2 dB
Data Input Swing Differential VIN 180 950 mV 2
Input Differential Impedance ZIN 90 100 110 Ω
TX Disable Disable 2.0 Vcc V
Enable 0 0.8 V
Receiver Electrical Characteristics
Parameter Symbol Min Typ Max Unit Notes
Centre Wavelength λc 1540 1550 1560 nm
Receiver Sensitivity -23 dBm 3
Receiver Overload -8.0 dBm 3
LOS De-Assert LOSD -24 dBm
LOS Assert LOSA -35 dBm
LOS Hysteresis 0.5 4 dB
Data Output Swing Differential Vout 400 600 800 mV 2
LOS High 2.0 Vcc V
Low 0.8 V
Notes

1. The optical power is launched into SMF.

2. Internally AC-coupled.

3. Measured with a PRBS 231-1 test pattern @9953Mbps, BER ≤1×10-12.
